A1 Series Digital Fuel Meter | 11-190 L/min

SKU A1Q9LMA100IA1
Availability: 4
In Stock
Availability: 1
In Stock
Availability: 1
In Stock
Original price $748.00 - Original price $748.00
Original price
$748.00
$748.00 - $748.00
Current price $748.00

Get the accurate and efficient fuel measurement you need with the A1 Series Digital Diesel Meter.

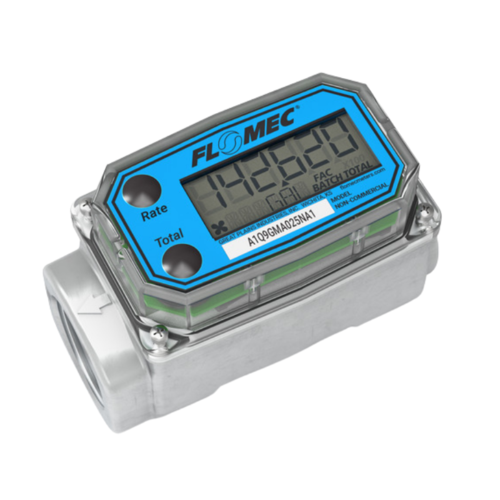

Introducing the FLOMEC A1 Series Fuel Meter - the ultimate solution for precise and reliable fuel measuring applications. Designed with cutting-edge technology and built to exceed industry standards, this fuel meter is a game-changer in the world of fuel measurement.

The FLOMEC A1 Series Fuel Meter is meticulously engineered to provide accurate and consistent readings, in a compact package, making it an invaluable tool for fuel-related applications. Whether you need to monitor fuel consumption in industrial settings, optimize fuel efficiency in transportation fleets, or ensure precise measurements during fuel transfers, this meter is the ideal choice.

This lightweight meter is designed to provide precise and reliable readings, thanks to its rugged aluminum housing, sealed electronic circuitry, and easy-to-read digital display. Plus, it comes factory calibrated and is certified to measure a wide range of fuels, from petrol to jet fuel.

Make the smart choice for mobile and efficient fuel flow measurement - choose the A1 Series Digital Diesel Meter.

Compatible Fluids

  • Petrol (blends up to E15)
  • Diesel
  • Biodiesel (blends up to B20)
  • Avgas
  • Jet A-1
  • Kerosene
Features
  • Unique package combines Turbine and LCD into a self-contained, compact, economical meter
  • Local Display Computer features: 2 Totals (Batch Total = Resettable, Total = Non-resettable) and Rate of Flow. Includes non-volatile totals
  • Output capabilities available to communicate with process control equipment
  • Lightweight, compact design allows for easy installation
  • Factory calibration in litres (can also be field calibrated to other fluids)
  • 2-year warranty
Specifications
  • Flowrate: 11-190 L/min
  • Type: Turbine
  • Accuracy: ± 1.5%
  • Repeatability: ± 0.2%
  • Pressure Rating: 300 PSI (20.7 BAR)
  • Operating Temperature Range: (-18°C TO 55°C)
  • Inlet Connection: 1" (F) (ISO/BSPP/NPT)
  • Outlet Connection: 1" (F) (ISO/BSPP/NPT)
  • Meter Housing: Lightweight, Corrosion-Resistant Aluminium
Box Contents
  • A1 Series Digital fuel meter
  • Alkaline AAA batteries (2)
  • Owners Manual
Connection: 1 in. ISO (F)
